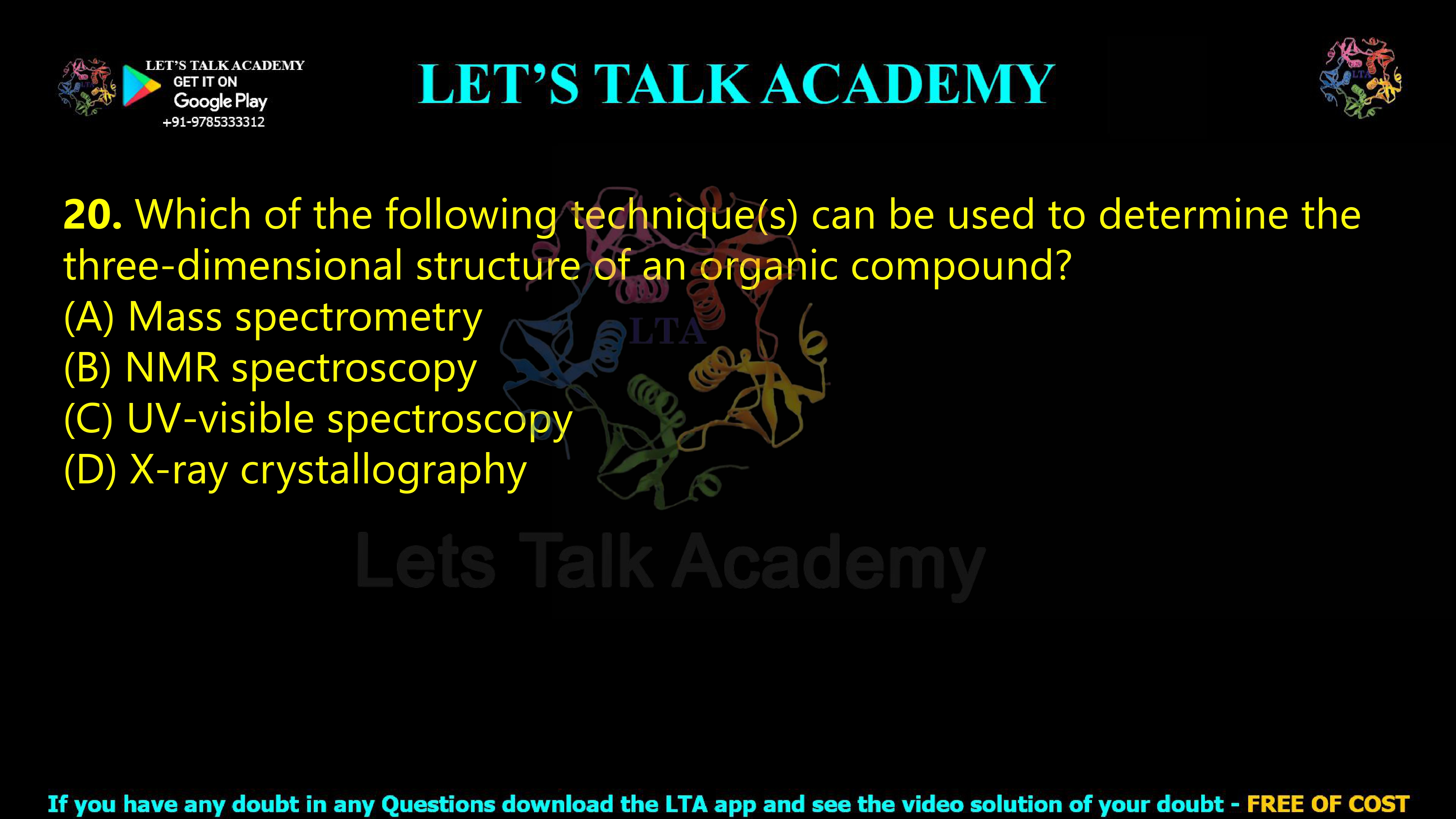

Which Techniques Can Be Used to Determine the Three-Dimensional Structure of an Organic Compound?

Correct Answer: (B) NMR Spectroscopy and (D) X-Ray Crystallography

The correct answers are Option (B), NMR spectroscopy, and Option (D), X-ray crystallography. Both techniques can provide information about the three-dimensional arrangement of atoms in organic compounds, although they obtain this information through completely different physical principles.

NMR spectroscopy can determine molecular connectivity, spatial relationships between nuclei, bond angles, conformational preferences and the three-dimensional structures of suitable organic molecules in solution. Advanced multidimensional NMR techniques provide distance and angular constraints that can be used to construct a three-dimensional molecular model.

X-ray crystallography determines three-dimensional atomic arrangements by analyzing the diffraction pattern produced when X-rays interact with an ordered crystal. It is one of the most powerful methods for obtaining detailed three-dimensional molecular structures.

Mass spectrometry is extremely useful for determining molecular mass, molecular formula and fragmentation patterns, but conventional mass spectrometry does not directly provide the complete three-dimensional atomic arrangement of an organic compound. UV-visible spectroscopy provides information mainly about electronic transitions and chromophores and is also not a direct technique for complete three-dimensional structure determination.

Therefore:

(A) Mass spectrometry → Incorrect

(B) NMR spectroscopy → Correct

(C) UV-visible spectroscopy → Incorrect

(D) X-ray crystallography → Correct

Final Answer: (B) and (D)

What Does Three-Dimensional Structure Determination Mean?

Determining the three-dimensional structure of an organic compound means establishing how its atoms are arranged in space. A molecular formula tells us which elements and how many atoms are present, while a two-dimensional structural formula shows which atoms are connected by chemical bonds. However, neither of these descriptions necessarily reveals the complete spatial arrangement of the molecule.

A three-dimensional molecular structure can provide information about bond geometry, molecular conformation, stereochemistry, distances between atoms and the relative orientation of different parts of a molecule. This information is particularly important because molecules with similar formulas and even similar bonding patterns can behave differently when their atoms are arranged differently in three-dimensional space.

For a technique to determine a three-dimensional structure, it must provide sufficient spatial information to establish how different atoms or groups are positioned relative to one another. Among the techniques listed in the question, NMR spectroscopy and X-ray crystallography can provide such information.

Why NMR Spectroscopy Can Determine Three-Dimensional Molecular Structure

Option (B), NMR spectroscopy, is correct because nuclear magnetic resonance spectroscopy can provide detailed information about the chemical environment, connectivity and spatial relationships of atoms within a molecule.

Basic one-dimensional NMR experiments can reveal the number of chemically different nuclei, their electronic environments, the relative number of nuclei contributing to signals and coupling relationships between neighboring atoms. This information is extremely useful for determining molecular structure.

More advanced multidimensional NMR experiments go further by revealing relationships between nuclei that are connected through bonds or located close to one another in three-dimensional space. These experimentally derived relationships can be converted into structural constraints and used to calculate a family of three-dimensional molecular structures.

NMR is especially valuable because many experiments can be performed with molecules in solution. Therefore, the structure can be investigated in an environment where the molecule may retain biologically or chemically relevant conformational behavior.

How Does NMR Spectroscopy Provide Structural Information?

NMR spectroscopy examines nuclei that possess suitable magnetic properties. When a sample is placed in a strong magnetic field and exposed to radiofrequency radiation, these nuclei can produce resonance signals whose properties depend on their local chemical and magnetic environments.

The chemical shift provides information about the electronic environment surrounding a nucleus. The integration of a proton NMR signal can provide information about the relative number of contributing protons. Spin-spin coupling reveals relationships between nearby nuclei connected through chemical bonds.

When these different forms of information are combined, researchers can determine how atoms are connected and obtain important evidence about molecular geometry and conformation.

Role of Multidimensional NMR in Three-Dimensional Structure Determination

Complex organic compounds often contain many overlapping signals that cannot be interpreted completely using only a simple one-dimensional spectrum. Multidimensional NMR techniques help separate and correlate these signals.

Different multidimensional experiments provide different types of structural information. Some reveal correlations between nuclei connected through chemical bonds, while others identify nuclei that are close together in three-dimensional space.

Spatial proximity information is particularly important for three-dimensional structure determination. If two nuclei are known to be close in space, this relationship places a constraint on the possible conformations of the molecule.

By collecting many such experimental constraints, computational methods can generate molecular structures that satisfy the NMR data.

Why Spatial Proximity Is Important in NMR Structure Determination

Two atoms may be far apart in the chemical bonding sequence but physically close together because the molecule folds or adopts a particular conformation. Therefore, information based only on covalent connectivity may not be sufficient to determine the complete three-dimensional structure.

NMR experiments that detect spatial relationships can reveal which nuclei approach one another in the folded molecular structure. These observations provide distance-related constraints that help define the molecular conformation.

This ability makes NMR much more than a technique for identifying functional groups. Under suitable conditions, it can be used to determine detailed three-dimensional structures.

Why Option (A) Mass Spectrometry Is Incorrect

Option (A), mass spectrometry, is incorrect as the intended answer because conventional mass spectrometry is not a direct method for determining the complete three-dimensional structure of an organic compound.

Mass spectrometry measures ions according to their mass-to-charge ratio. It is exceptionally powerful for determining molecular mass, identifying molecular formulas with high-resolution measurements and studying characteristic fragmentation patterns.

A fragmentation pattern can provide valuable evidence about the presence of particular structural units within a molecule. Therefore, mass spectrometry is undoubtedly an important structural characterization technique. However, identifying molecular mass and fragments is not the same as directly determining the complete three-dimensional coordinates or spatial arrangement of atoms.

For this reason, mass spectrometry is not selected as the correct technique in this question.

What Information Does Mass Spectrometry Provide?

Mass spectrometry begins by generating ions from the analyte. These ions are then separated according to their mass-to-charge ratios and detected to produce a mass spectrum.

The molecular ion or related precursor ion can provide information about the molecular mass of the compound. Accurate mass measurements can also help determine the elemental composition and molecular formula.

Fragment ions provide additional structural clues because molecules often break apart in ways that reflect their chemical structure. By analyzing these fragments, researchers can infer the presence of certain functional groups or structural subunits.

Therefore, mass spectrometry provides highly valuable molecular information, but conventional mass spectra do not directly provide a complete three-dimensional map of atomic positions.

Why Molecular Mass Is Not the Same as Three-Dimensional Structure

Two different molecules can have the same molecular mass while possessing different arrangements of atoms. Such compounds may be structural isomers or stereoisomers.

A measurement of molecular mass alone cannot reveal whether particular groups point in different spatial directions or whether a molecule adopts one conformation rather than another.

Even when fragmentation data reveal substantial information about connectivity, additional techniques are often required to establish detailed stereochemistry and three-dimensional structure.

This explains why mass spectrometry is incorrect for the specific purpose asked in the question.

Why Option (B) NMR Spectroscopy Is Correct

Option (B), NMR spectroscopy, is correct because NMR can provide information about both molecular connectivity and spatial relationships between atoms.

NMR spectra can reveal chemically distinct atomic environments, neighboring nuclei and longer-range relationships. Advanced NMR methods can also identify atoms that are close together in space, even when they are not directly adjacent in the bonding sequence.

These experimental observations can be translated into structural constraints. When a sufficient number of constraints is available, researchers can calculate the three-dimensional structure of the molecule.

Therefore, NMR spectroscopy is an established method for three-dimensional molecular structure determination.

Why Option (C) UV-Visible Spectroscopy Is Incorrect

Option (C), UV-visible spectroscopy, is incorrect because UV-visible spectroscopy primarily studies electronic transitions rather than the complete three-dimensional arrangement of atoms in a molecule.

When a molecule absorbs ultraviolet or visible radiation, electrons can move from lower-energy electronic states to higher-energy states. The resulting absorption spectrum can provide useful information about chromophores, conjugated systems and certain aspects of electronic structure.

UV-visible spectroscopy is widely used for quantitative concentration measurements and for studying molecules containing suitable light-absorbing groups. However, the information contained in a conventional UV-visible spectrum is generally insufficient to reconstruct the complete three-dimensional structure of an organic compound.

Therefore, Option (C) is not a correct answer.

What Does UV-Visible Spectroscopy Actually Measure?

UV-visible spectroscopy measures the absorption of ultraviolet and visible radiation by a sample. Absorption occurs when the energy of the incoming radiation matches the energy required for an allowed electronic transition.

The technique is particularly useful for compounds containing chromophores and conjugated systems. Changes in the extent of conjugation can influence the wavelength and intensity of absorption.

However, a UV-visible absorption spectrum usually contains broad electronic absorption bands rather than the large number of detailed spatial constraints required for complete three-dimensional structure determination.

Why Electronic Transition Data Are Not Enough for Complete 3D Structure Determination

Electronic absorption can reveal important information about particular structural features, but many different molecules may produce similar UV-visible absorption patterns.

A conventional UV-visible spectrum generally cannot specify the exact position of every atom in three-dimensional space. It also cannot usually distinguish all stereochemical relationships or define the complete molecular conformation.

Thus, UV-visible spectroscopy is useful for molecular characterization but is not a direct complete three-dimensional structure determination method.

Why X-Ray Crystallography Can Determine Three-Dimensional Molecular Structure

Option (D), X-ray crystallography, is correct because this technique can determine the three-dimensional arrangement of atoms within a crystalline compound.

When a crystal is exposed to X-rays, the X-rays interact with the electron density of the atoms in the crystal. Because the molecules are arranged in an ordered repeating lattice, the scattered X-rays interfere with one another and produce a characteristic diffraction pattern.

The positions and intensities of the diffraction spots contain information about the distribution of electron density within the crystal. Mathematical analysis of the diffraction data allows an electron-density map to be generated, and an atomic model can then be built and refined against the experimental data.

The final result can reveal the three-dimensional arrangement of atoms, molecular geometry, conformation and many stereochemical features of the compound.

Basic Principle of X-Ray Crystallography

X-rays have wavelengths that are suitable for investigating atomic-scale structures. When an ordered crystal is placed in an X-ray beam, the regularly arranged atoms scatter the incident radiation.

The scattered waves can reinforce or cancel one another depending on their relative phases. Constructive interference produces measurable diffraction spots.

The diffraction pattern is therefore related to the internal arrangement of atoms within the crystal. By analyzing this pattern, researchers can determine the three-dimensional electron-density distribution and build a molecular model.

Why Is a Crystal Important for X-Ray Crystallography?

A crystal contains many copies of the same molecule arranged in a regular and repeating pattern. This ordered arrangement amplifies the diffraction signal and allows a measurable pattern to be produced.

If molecules were arranged completely randomly, the scattered X-rays would not generate the same type of organized diffraction pattern required for conventional single-crystal structure determination.

Therefore, obtaining a suitable crystal is an important step in conventional X-ray crystallography. The quality of the crystal can strongly influence the quality of the structural data.

How X-Ray Diffraction Reveals Atomic Arrangement

The diffraction pattern produced by a crystal contains information about the periodic arrangement of electron density. Researchers measure the positions and intensities of the diffraction spots and use mathematical methods to reconstruct an electron-density map.

Atoms are then positioned within this electron density to create a structural model. The model is refined until it provides a satisfactory agreement with the experimental diffraction data.

The resulting structure can provide detailed information about bond lengths, bond angles, molecular conformation and the relative arrangement of different parts of the molecule.

This ability to reveal spatial atomic organization is why X-ray crystallography is one of the clearest correct answers to the question.

How NMR and X-Ray Crystallography Differ

NMR spectroscopy and X-ray crystallography can both provide three-dimensional structural information, but they study molecules under different conditions and use different experimental principles.

NMR spectroscopy commonly studies molecules in solution. The technique uses magnetic properties of nuclei and extracts structural information from chemical shifts, coupling relationships and spatial correlations.

X-ray crystallography studies molecules arranged within a crystal. It uses X-ray diffraction to determine electron density and construct an atomic model.

Therefore:

NMR spectroscopy → Three-dimensional structural information commonly obtained in solution

X-ray crystallography → Three-dimensional structural information obtained from an ordered crystal

These differences make the two techniques highly complementary.

Can NMR Reveal Molecular Dynamics?

One important advantage of NMR spectroscopy is that it can provide information not only about molecular structure but also about molecular motion and conformational exchange.

Molecules in solution are often dynamic rather than completely rigid. Different regions may move at different rates, and a molecule may switch between alternative conformations.

NMR experiments can sometimes detect these dynamic processes over a range of timescales. Therefore, NMR can provide a view of molecular behavior in addition to a three-dimensional structural model.

This is especially valuable when the solution behavior of the molecule is important for understanding its chemical or biological function.

Can X-Ray Crystallography Reveal Stereochemistry?

X-ray crystallography can provide powerful information about molecular stereochemistry because the three-dimensional arrangement of atoms is determined from experimental diffraction data.

The technique can reveal the relative orientation of substituents and help distinguish different stereochemical arrangements. Under appropriate experimental conditions, crystallographic analysis can also contribute to the determination of absolute configuration.

This capability is particularly valuable for organic compounds containing stereogenic centers, where a two-dimensional formula may not fully describe the spatial arrangement of groups.

Structural Information Provided by Mass Spectrometry

Although mass spectrometry is not the correct answer for direct complete three-dimensional structure determination, it remains one of the most important analytical methods for characterizing organic compounds.

Mass spectrometry can provide accurate molecular mass, information about elemental composition and characteristic fragmentation patterns. Tandem mass spectrometry can isolate selected ions and study their subsequent fragmentation in greater detail.

These data can greatly narrow the range of possible structures. However, additional techniques such as NMR spectroscopy or X-ray crystallography are generally required when the objective is to establish a detailed three-dimensional atomic arrangement.

Structural Information Provided by UV-Visible Spectroscopy

UV-visible spectroscopy can reveal whether a molecule contains chromophores capable of absorbing ultraviolet or visible light. It can also provide information about conjugation and changes in electronic structure.

The technique is especially useful for quantitative analysis because absorbance can be related to concentration through the Beer-Lambert law.

However, the relatively limited structural detail in a conventional UV-visible spectrum does not allow the complete three-dimensional arrangement of atoms to be reconstructed.

Therefore, UV-visible spectroscopy is an important characterization technique but not the correct choice for full three-dimensional structure determination in this question.

Why Are Both NMR Spectroscopy and X-Ray Crystallography Correct?

The question asks which technique or techniques can be used to determine the three-dimensional structure of an organic compound. It does not require all correct techniques to use the same physical principle or experimental conditions.

NMR spectroscopy can generate three-dimensional structural models from experimentally determined connectivity, distance and angular information. X-ray crystallography can determine three-dimensional atomic arrangements from diffraction data obtained from crystals.

Since both methods can provide genuine three-dimensional molecular structural information, both must be selected.

Therefore:

Correct techniques = NMR spectroscopy + X-ray crystallography

Comparison of All Four Techniques

Option (A): Mass Spectrometry

Mass spectrometry is highly useful for determining molecular mass, molecular formula and fragmentation behavior. However, conventional mass spectrometry does not directly determine the complete three-dimensional atomic arrangement of an organic compound. Therefore, this option is incorrect.

Option (B): NMR Spectroscopy

NMR spectroscopy provides detailed information about atomic environments, connectivity, spatial proximity and molecular conformation. Advanced NMR experiments can be used to calculate three-dimensional molecular structures. Therefore, this option is correct.

Option (C): UV-Visible Spectroscopy

UV-visible spectroscopy primarily provides information about electronic transitions, chromophores and conjugated systems. It does not provide enough spatial information for complete three-dimensional structure determination. Therefore, this option is incorrect.

Option (D): X-Ray Crystallography

X-ray crystallography analyzes the diffraction of X-rays by an ordered crystal and can reveal the three-dimensional arrangement of atoms within the molecule. Therefore, this option is correct.

Why Multiple Analytical Techniques Are Often Used Together

In practical organic structure determination, researchers often combine several analytical techniques because each method provides a different type of information.

Mass spectrometry may provide the molecular mass and molecular formula. NMR spectroscopy can reveal connectivity, functional relationships and spatial information. UV-visible spectroscopy can provide information about chromophores and electronic transitions. X-ray crystallography can provide a detailed three-dimensional atomic structure when a suitable crystal is available.

Using multiple complementary techniques increases confidence in the proposed molecular structure. However, when the question specifically asks which listed methods can determine a three-dimensional structure, the correct choices are NMR spectroscopy and X-ray crystallography.

Final Answer

Correct Answer: (B) NMR Spectroscopy and (D) X-Ray Crystallography

Option (A), Mass spectrometry, is incorrect because it primarily provides molecular mass, elemental composition and fragmentation information rather than a direct complete three-dimensional atomic structure.

Option (B), NMR spectroscopy, is correct because advanced NMR methods can provide connectivity, distance and angular constraints that allow the three-dimensional structure of an organic compound to be determined.

Option (C), UV-visible spectroscopy, is incorrect because it primarily studies electronic transitions and provides information about chromophores and conjugation rather than complete three-dimensional atomic arrangement.

Option (D), X-ray crystallography, is correct because analysis of X-ray diffraction from a crystal can reveal the three-dimensional electron-density distribution and atomic arrangement of a compound.

(A) Mass spectrometry → Incorrect

(B) NMR spectroscopy → Correct

(C) UV-visible spectroscopy → Incorrect

(D) X-ray crystallography → Correct

Therefore, the techniques that can be used to determine the three-dimensional structure of an organic compound are NMR spectroscopy and X-ray crystallography, making Options (B) and (D) the correct answers.
