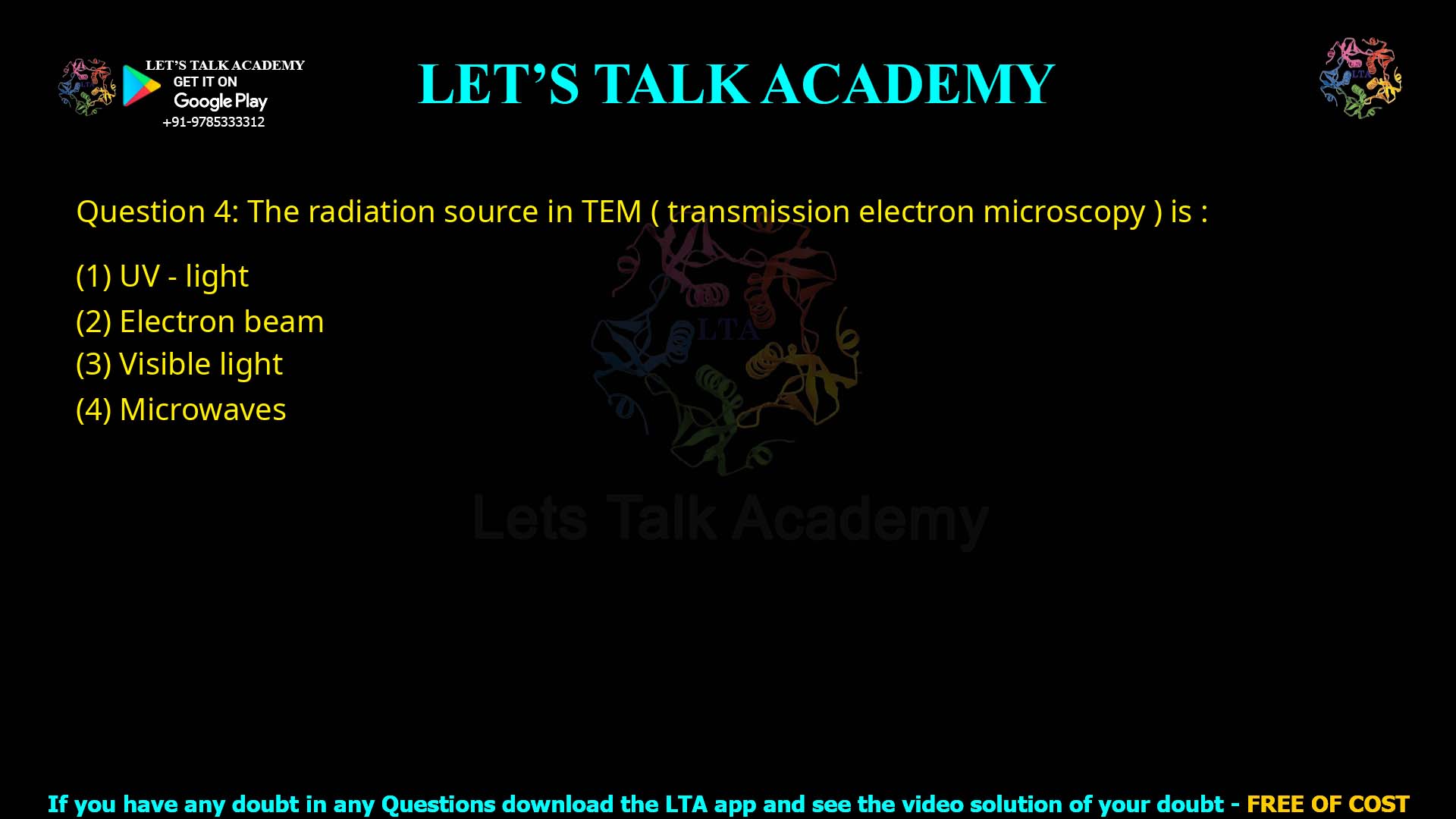

Q.4 The radiation source in TEM (transmission electron microscopy) is :
Transmission Electron Microscopy (TEM) uses an electron beam as its radiation source, enabling atomic-level imaging far beyond light-based methods.
Question Breakdown
This question assesses understanding of microscopy principles, key for molecular biology and nanotechnology studies where high-resolution imaging of cellular ultrastructures is essential.
Option Explanations
-
UV-light: Ultraviolet light has short wavelengths (~200-400 nm) but cannot penetrate samples thinly enough for TEM’s nanoscale resolution; it’s used in fluorescence microscopy instead.
-
Electron beam: TEM’s primary radiation source is a high-energy electron beam (typically 100-300 kV) generated by an electron gun (e.g., tungsten filament or field emission gun), transmitted through ultra-thin samples to form images via scattering.
-
Visible light: Light microscopes use visible wavelengths (400-700 nm), limited to ~200 nm resolution due to diffraction; unsuitable for TEM’s electron optics.
-
Microwaves: These long-wavelength electromagnetic waves (~mm scale) are used in radar or heating, not imaging at TEM’s atomic scale (~0.2 nm resolution).
Introduction to TEM Radiation Source
The radiation source in TEM (transmission electron microscopy) is an electron beam, providing superior resolution for imaging biomolecules and nanomaterials. This distinguishes TEM from light-based techniques, vital for life sciences research.
How Electron Beam Works in TEM
An electron gun emits the electron beam, accelerated by high voltage through vacuum, then focused by magnetic lenses onto thin samples (<100 nm). Electrons transmit or scatter, forming contrast based on sample density for atomic-scale details.
Comparison of Radiation Sources
| Option | Wavelength/Scale | TEM Suitability |
|---|---|---|
| UV-light | 200-400 nm | Too long for atomic imaging; sample penetration limited |
| Electron beam | ~0.002 nm (at 200 kV) | Ideal; enables 0.2 nm resolution via transmission |
| Visible light | 400-700 nm | Diffraction-limited; for optical microscopy only |
| Microwaves | mm-cm | Non-imaging wavelengths; no nanoscale focus |
Electron beam uniquely powers TEM’s high-resolution capabilities.
Applications in Biology
TEM reveals virus structures, protein complexes, and cellular organelles, essential for GATE Life Sciences and biotech studies.
