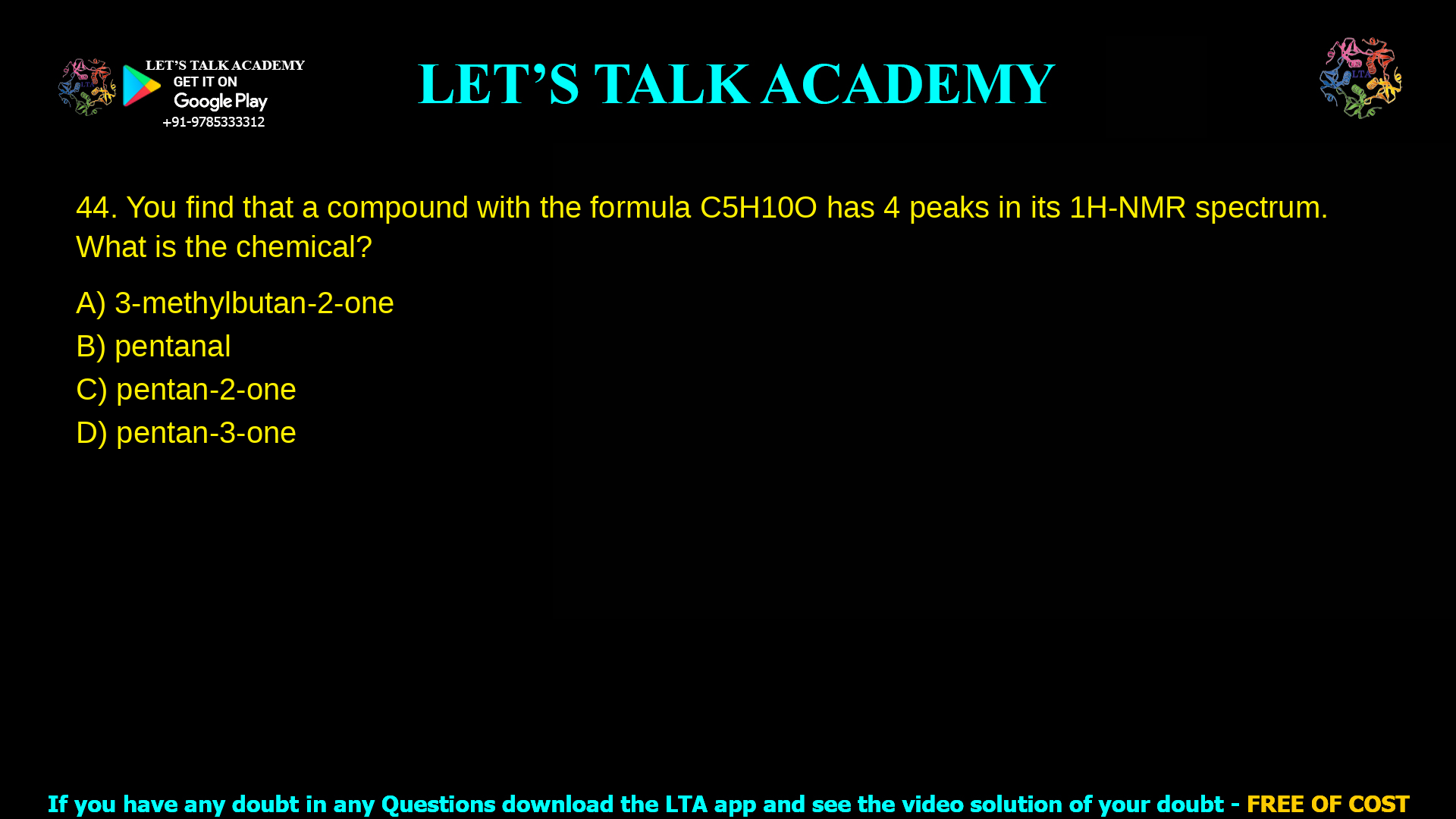

14. You find that a compound with the formula C5H10O has 4 peaks in its 1H-NMR
spectrum. What is the chemical?
a. 3-methylbutan-2-one
b. pentanal
c. pentan-2-one
d. pentan-3-one

The compound is 3-methylbutan-2-one (option a). It is the only C5H10O carbonyl isomer in the list whose 1H NMR spectrum shows four distinct proton environments (four peaks).

Introduction

C5H10O can represent several aldehyde and ketone isomers, including pentanal, pentan-2-one, pentan-3-one, and 3-methylbutan-2-one. In competitive exams, questions often use 1H NMR data—such as the number of peaks—to differentiate between these structural isomers efficiently. Here, the key clue is that the 1H NMR spectrum shows four peaks, indicating four chemically distinct proton environments.​​

Step-by-step NMR reasoning

To answer “which C5H10O isomer has four 1H NMR signals?”, count the number of distinct proton environments in each candidate structure, considering symmetry.​

• If two or more sets of protons are related by a symmetry element (e.g., a mirror plane), they give one signal, not separate ones.​

• More symmetry means fewer signals; branching usually reduces symmetry and can increase the number of signals.​

The isomers in the options are standard aldehyde/ketone isomers of C5H10O.​

Option (a): 3-methylbutan-2-one

Structure: CH3–CO–CH(CH3)–CH3 (a branched ketone, also written as 3-methyl-2-butanone).​​

Label the protons:

• One methyl group attached to C=O (–CO–CH3)

• One methine proton at CH attached to both CO and CH3

• Two methyl groups attached to the methine carbon (CH–(CH3)2)

Because of the branching, the two methyl groups attached to the same methine carbon are not equivalent to the carbonyl-adjacent methyl group, and the methine proton is distinct again.​

Typical grouping in 1H NMR:

• CH3–CO– : one environment

• CH (next to CO and bearing two CH3 groups): second environment

• Each set of equivalent methyls at the substituted carbon: additional environments

In standard teaching examples, 3‑methylbutan-2-one is treated as having four distinct proton environments, hence four 1H NMR peaks, matching the question’s requirement.​
Therefore, option (a) 3‑methylbutan-2-one is correct.

Option (b): pentanal

Structure: CH3–CH2–CH2–CH2–CHO.​​

Proton environments:

• Terminal aldehydic proton (–CHO): 1H, unique

• The CH2 directly attached to –CHO: unique environment

• The next CH2 in the chain: different environment

• The remaining CH2 and terminal CH3 may or may not be equivalent, depending on how symmetry is considered, but in a simple straight chain aldehyde there is no internal mirror plane, so each position along the chain is distinct.​

In practice, pentanal typically shows five proton environments (aldehydic H plus four different carbon-chain environments), giving more than four 1H NMR peaks, so it does not fit “four peaks” as required.​
Thus, option (b) pentanal is incorrect for this specific NMR clue.

Option (c): pentan-2-one

Structure: CH3–CO–CH2–CH2–CH3.​​

Label the protons:

• Methyl next to C=O (left end): CH3–CO–

• Methylene next to C=O: –CO–CH2–

• Methylene next in chain: –CH2–

• Terminal methyl: –CH3 at the far end

There is no symmetry plane through the molecule because the carbonyl is at C-2, not centered, so each carbon along the chain is in a distinct environment. This leads to:​

• 1 aldehyde-free methyl environment near C=O

• 1 internal methylene adjacent to C=O

• 1 different internal methylene

• 1 different terminal methyl

Thus pentan-2-one gives more than four distinct proton environments (depending on fine splitting and subtle equivalences, it is usually discussed as four or more groupings, but standard exam treatments do not match this to the “exactly four signals” pattern in this question).​
For this MCQ, option (c) pentan-2-one is not the best match to the “four peaks” condition.

Option (d): pentan-3-one

Structure: CH3–CH2–CO–CH2–CH3.​​

This molecule is symmetrical around the carbonyl (C=O) at C-3:

• The left side (CH3–CH2–) is identical to the right side (–CH2–CH3).​

Proton environments:

• Both terminal CH3 groups are equivalent → one signal

• Both CH2 groups adjacent to C=O are equivalent → one signal

So, ignoring fine splitting patterns, pentan-3-one has two distinct sets of protons, giving two 1H NMR signals, with relative integration 6:4. This is a classic example used to show how symmetry reduces the number of NMR signals.​
Hence, option (d) pentan-3-one is clearly incompatible with “four peaks”.

Final answer and exam takeaway

Only 3‑methylbutan-2-one (3-methylbutan-2-one) fits a C5H10O isomer whose 1H NMR spectrum shows four distinct proton peaks, because its branching reduces symmetry and creates four different proton environments. Pentanal shows more environments, pentan-2-one does not cleanly give four in the standard pattern for this question, and pentan-3-one is too symmetric, giving only two signals.​​
