The resolving power of a bright field microscope determines its ability to distinguish between two closely spaced points as distinct objects. Many factors can influence the resolving power, yet some have no effect despite common assumptions. Let’s explore these factors in full detail, with special focus on the question you posed and extensive coverage of the scientific principles behind the resolving power in bright field microscopy.

Understanding Resolving Power in Microscopes

Resolving power is one of the most important characteristics of any microscope—it defines how much detail the microscope can reveal. Technically, it is the minimum distance between two points on a specimen that can still be distinguished as separate entities through the lens system of the microscope.

Mathematical Definition

For optical microscopes, the resolving power ($R$) is defined based on Abbe’s criterion:

                             R=0.61λ / nsin⁡θ

Where:

• λ= Wavelength of light used

• n = Refractive index of the medium between specimen and objective lens

• $\theta$ = Half-angle of the cone of light entering the objective lens

This formula shows that the resolving power is directly proportional to the wavelength and inversely proportional to both the refractive index and the sine of the angle of light collection, which is related to the numerical aperture (NA).

Factors That Affect Resolving Power

1. Color (Wavelength) of Light

• Shorter wavelengths (e.g., violet) improve resolving power because R decreases as λ decreases, allowing the microscope to distinguish finer details.

• Ultraviolet light can provide even higher resolution, but is not commonly used for biological samples due to the risk of damage.

2. Angle of Admittance (Angular Aperture) of Light

• Described by sin⁡θ. Increased angular aperture means a larger cone of light enters the objective, improving resolution.

• Lenses with high numerical aperture (NA = nsin⁡θ) provide better resolving power

3. Medium Between Objective Lens and Specimen

• The refractive index (n) plays a crucial role. Using immersion oil (higher refractive index than air) increases NA and thus improves resolving power.

• Oil immersion objectives exploit this to enhance detail, a major advantage over using air.

The Factor That Does NOT Affect Resolving Power: Intensity of Light

Contrary to intuition, intensity of light does not affect the resolving power of a microscope.

• Intensity only impacts the brightness of the image, not the fineness of detail that can be distinguished.

• If the light is too dim, the image will be hard to see and may suffer from noise, but the theoretical limit of how close two separate objects can be remains unchanged.

• The formula for resolving power does not include intensity—resolution depends on the ability to distinguish two points, not on how much light is present.

In-Depth Explanation of Each Factor

Wavelength and Color of Light

• Microscopes commonly use visible light, ranging from red (∼700nm) to violet (∼400nm).

• Resolving power increases (i.e., finer details (smaller $R$)) with shorter wavelengths.

• In practice, using violet light unveils finer structural details than red light. Electron microscopes use electrons—whose wavelength is even shorter—allowing resolution down to atomic scales.

Numerical Aperture and Angular Aperture

• NA measures the lens’s ability to gather light and resolve fine specimen detail.

• High NA correlates with higher resolving power.

• Can be increased by using lenses with wide angular aperture and high refractive index medium.

Medium between Lens and Specimen

• Air has a refractive index close to 1.0; immersion oil has around 1.5

• By immersing the specimen in oil, more light is refracted into the objective lens.

• Result: much finer resolution, especially at higher magnifications (e.g., 100x oil immersion objectives).

Intensity of Light

• Only affects how visible and bright the image is.

• If sufficient intensity is used, the image is clear; too much can bleach specimens or cause glare.

• Insufficient light makes details hard to see but does not move the theoretical resolution limit.

Other Influential Optical Elements

• Lens Quality: Aberrations in lens design can reduce resolving power even if theoretical limits are favorable.

• Specimen Preparation: Thickness and opacity affect what can be resolved.

• Condenser Setting: Proper illumination technique affects contrast, but does not change resolving power itself.

Errors and Misconceptions

Why Intensity Does Not Affect Resolving Power

Resolving power is a function of optical physics—a consequence of how light waves interact with lenses and specimens. The intensity does not alter the minimum distance two points must be to appear distinct; it only changes how easily the eye (or camera) can see those points. Despite common mistakes in student reasoning, brighter lights simply make images easier to view, not more resolvable.

Optimizing Microscope Resolution in Practice

Researchers seeking high-resolution images make practical choices:

• Select the shortest wavelength practical for their specimens.

• Use oil immersion objectives for greater NA.

• Place objectives as close as possible to the specimen to maximize angular aperture.

• Adjust contrast for best visibility, keeping intensity optimal but not excessive.

Comparison Table: Impact on Resolving Power

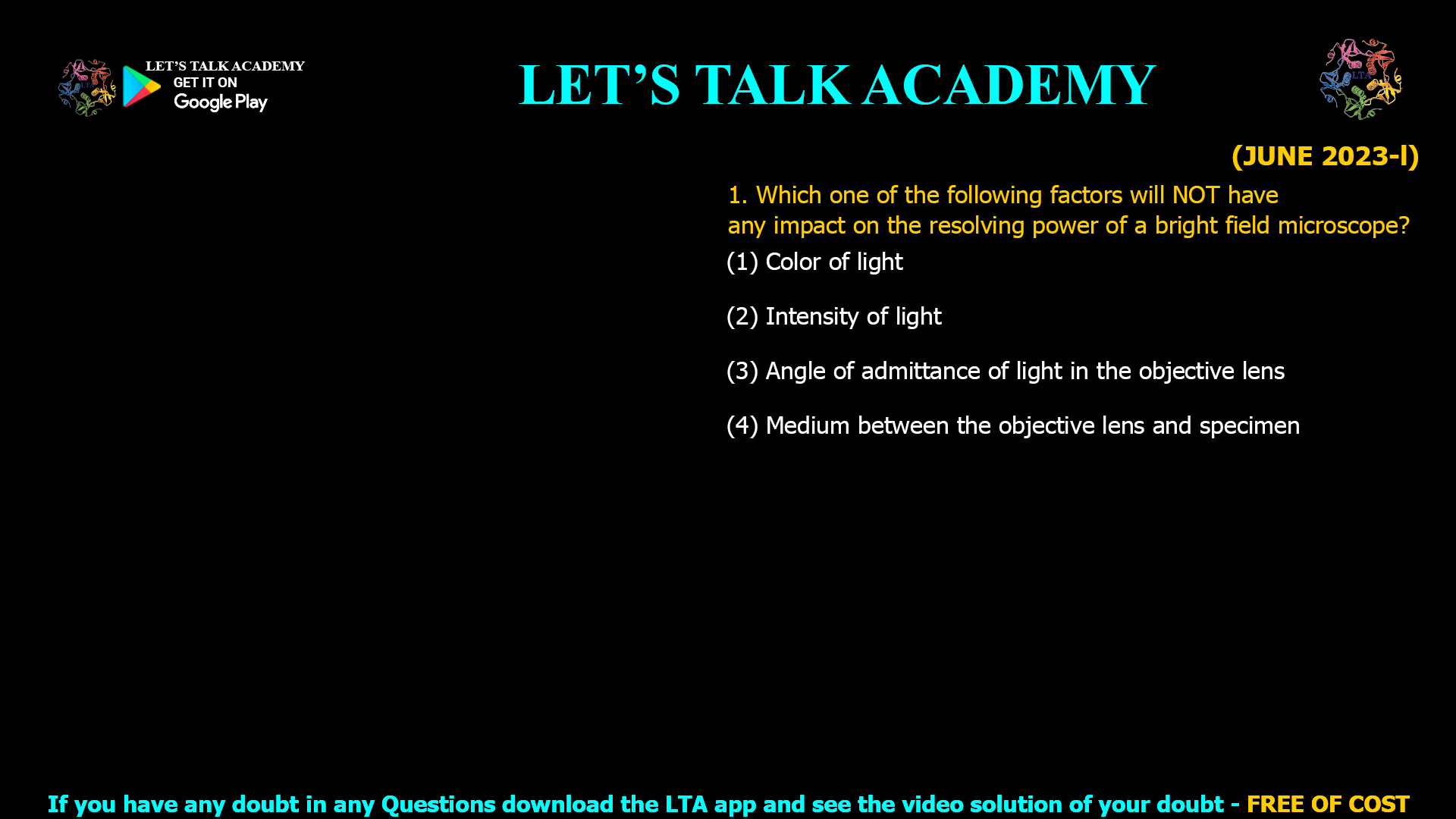

Recap: Answer to the Question

Given your options:

1. Color of light

2. Intensity of light

3. Angle of admittance of light in the objective lens

4. Medium between the objective lens and specimen

The factor that will NOT have any impact on the resolving power of a bright field microscope is Intensity of light.

Detailed Science Behind Resolution

Diffraction Limit and Human Vision

All optical microscopes are restricted by the diffraction limit: when two point objects are closer than about half the wavelength of light, their images overlap and cannot be distinguished. Advanced techniques such as super-resolution fluorescence microscopy bypass this limit—however, for conventional bright field, these physical constraints are absolute.

Rayleigh Criterion

The Rayleigh criterion defines the resolvability of two points:

R=0.61λ / nsin⁡θ

Like Abbe’s, it highlights the key role of wavelength and numerical aperture.

Contrast Versus Resolution

Sometimes intense illumination is confused with resolution—but contrast means distinguishing objects from background, while resolution refers to distinguishing two points as separate.

Innovations in Microscopy

Techniques such as STED, PALM, and fluorescent super-resolution allow imaging beyond the classical diffraction limit. However, in traditional bright field microscopy, the resolution limit is dictated by wavelength, NA, and refractive index—not illumination intensity.

Practical Advice for Bright Field Microscopy

• Use the right color filter—violet or blue for higher resolution.

• Select oil immersion objectives for small details.

• Always optimize condenser position for maximum NA.

• Set illumination intensity for comfort—never for resolution.

• Regularly clean and align optics for best performance.

• Know the limits: organelles, some viruses, and fine protein structures may require fluorescence or electron microscopy.

Frequently Asked Questions

Q: Can higher light intensity improve microscope resolution?

A: No, it can only make the image brighter; resolving power is determined by optical parameters.

Q: What is the first step to improve microscope resolution?

A: Use shorter wavelength light and higher NA objective lens, and oil immersion when possible.

Q: How do oil immersion objectives work?

A: They increase the refractive index between specimen and lens, allowing more light to be refracted and captured, thus improving NA and resolving power.

Conclusion

The resolving power of a bright field microscope is affected by the wavelength of light, the angular aperture (numerical aperture), and the refractive index of the medium between the objective lens and the specimen. The intensity of illumination, however, does not affect the resolving power—it influences only visibility and image brightness.
